Overlay hinge ATM RS-00 H-2 with EURO.surface mounted
Leave feedback on the product
Product code: 35558
Zadzwoń i zamów
Opis

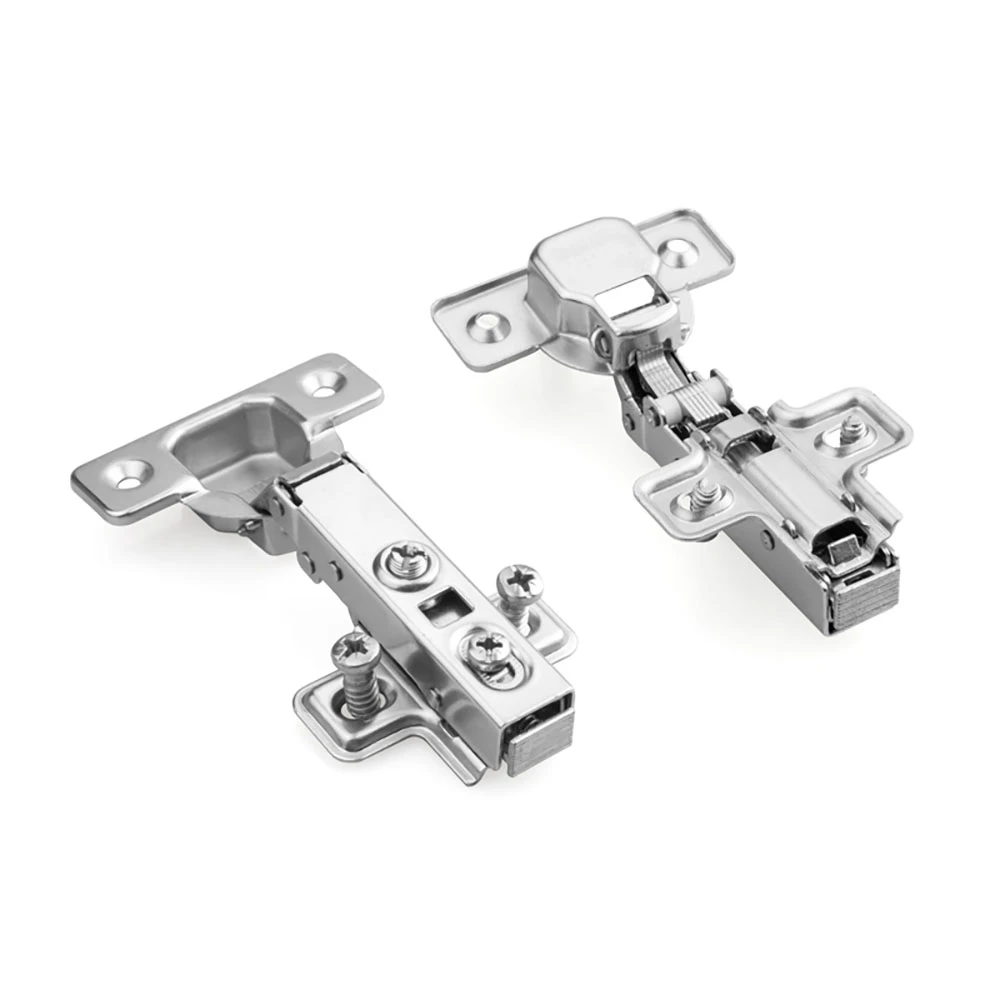

Hydraulic full overlay hinge ⌀35 mm RS-00 with H-2 CLIP-ON mounting plate and euro screws - Nickel-plated steel
ATM furniture accessories - fittings tailored to your furniture
Product features:
✔ Full overlay hinge
Overlay hinges are used to attach cabinet doors that overlap the furniture body. When closed, the doors completely cover (overlay) the edge of the cabinet body.
✔ Built-in SoftClose system
The SoftClose system ensures gentle and silent closing of cabinet doors. It eliminates slamming, improving everyday comfort.
✔ H-2 CLIP-ON mounting plate
The CLIP-ON plate enables quick and easy installation and removal of the cabinet front. The “click” mechanism speeds up work significantly, allowing tool-free attachment and detachment of fronts.
✔ Made of nickel-plated steel
Made of nickel-plated steel, the hinge is highly resistant to damage and corrosion, maintaining its properties and modern appearance for a long time.
✔ 110° opening angle, smooth door closing
The RS-00 hinge allows smooth and even closing of cabinet fronts. The opening angle of up to 110° improves usability by providing easy access to the cabinet interior.
✔ Euro screws included!
The set includes two euro screws designed for fixing the H-2 mounting plate.
Technical specifications:
- ☛ Brand: ATM
- ☛ Model: RS-00
- ☛ Color: Chrome
- ☛ H-2 CLIP-ON mounting plate
- ☛ Soft-close system
- ☛ Hinge type: Full overlay
- ☛ Cup diameter: 35 mm
- ☛ Hole spacing: 45 mm
- ☛ Material: Nickel-plated steel
Set includes:
- RS-00 full overlay (hydraulic) hinge - 1 pc
- H-2 CLIP-ON mounting plate - 1 pc
- Euro screws - 2 pcs
Fittings tailored to your furniture
By choosing ATM brand products, our customers can be confident that the accessories are perfectly suited to their needs. We offer a wide range of furniture accessories that are not only functional but also beautifully crafted, making them easy to adapt to any interior style. By selecting our products, you are investing in superior quality and craftsmanship. Discover our full range of products today!
