Half-overlay cabinet hinge ATM AS-08 H-0 with 3D adjustment Soft-Close & Clip-On
Leave feedback on the product
Product code: 41106
Zadzwoń i zamów
Opis

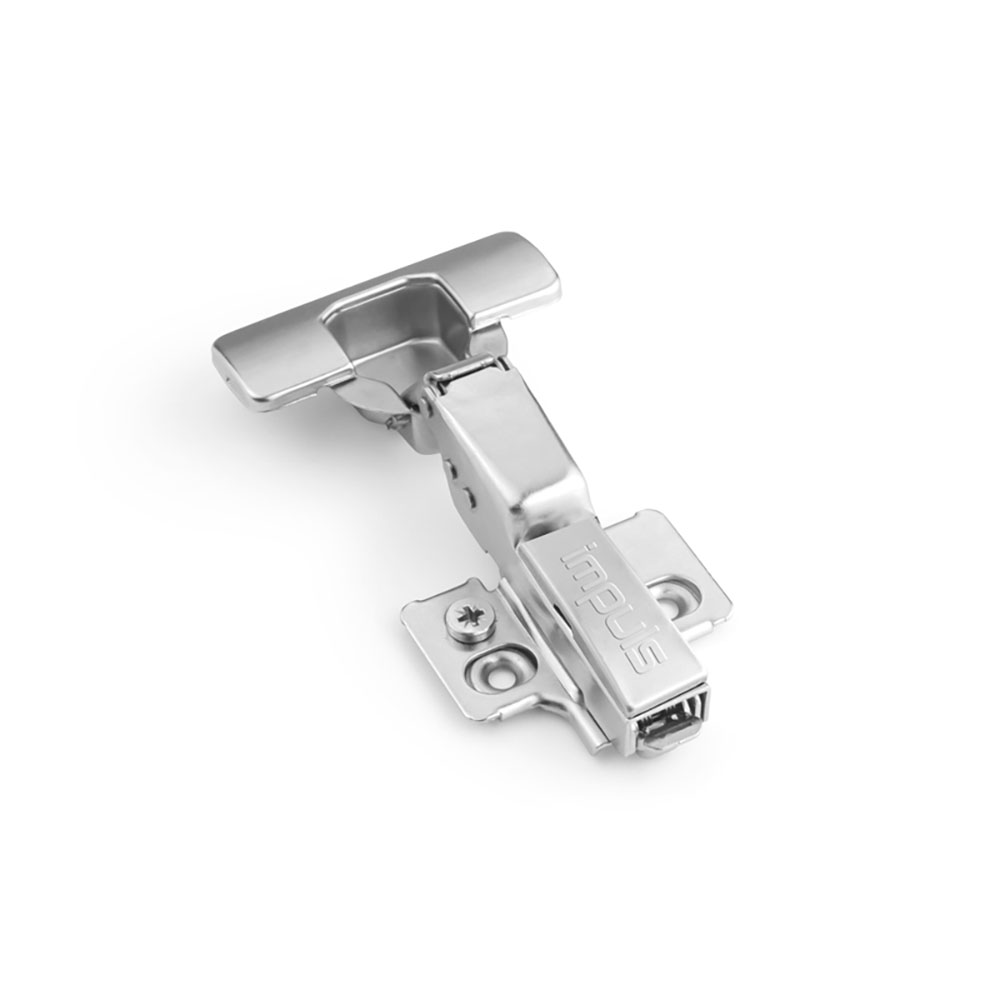

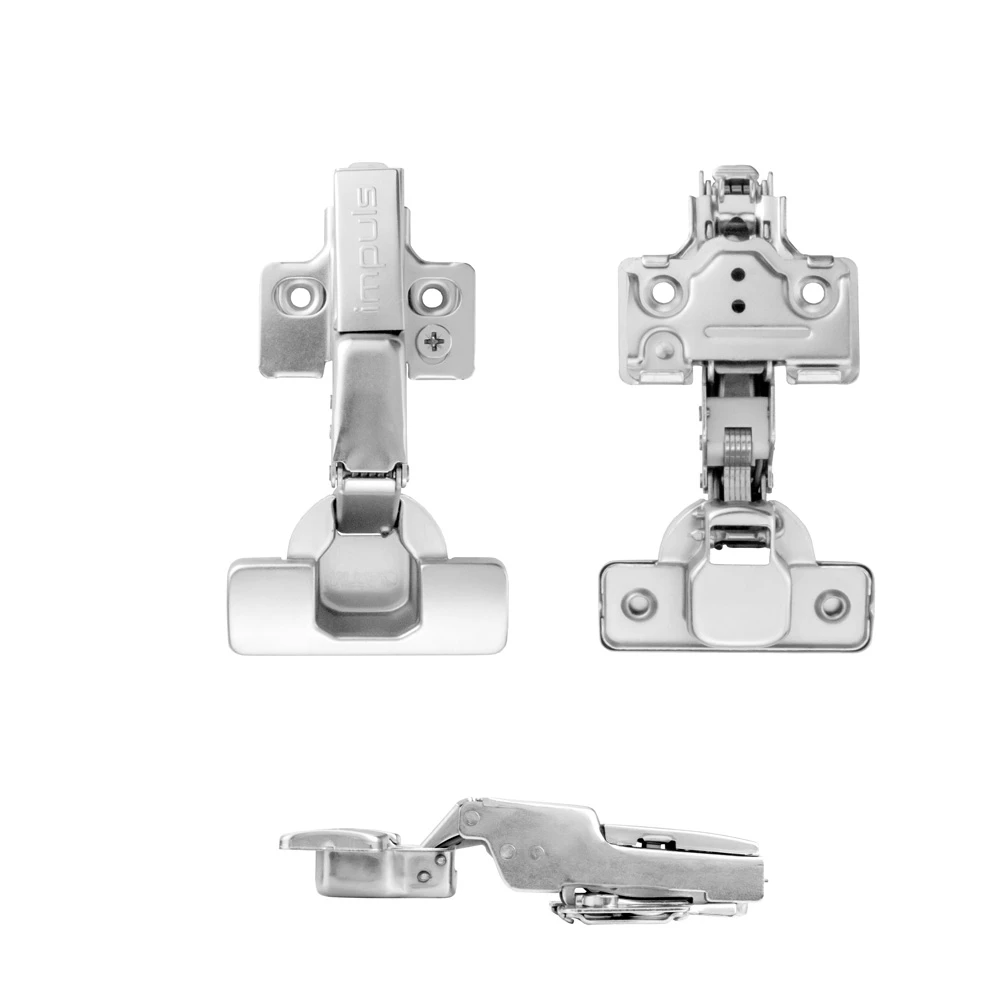

Half overlay hydraulic cabinet hinge IMPULS AS-08 H0 ⌀35 mm, CLIP-ON, soft close, 3D adjustment
ATM furniture accessories - fittings tailored to your furniture
Product description:

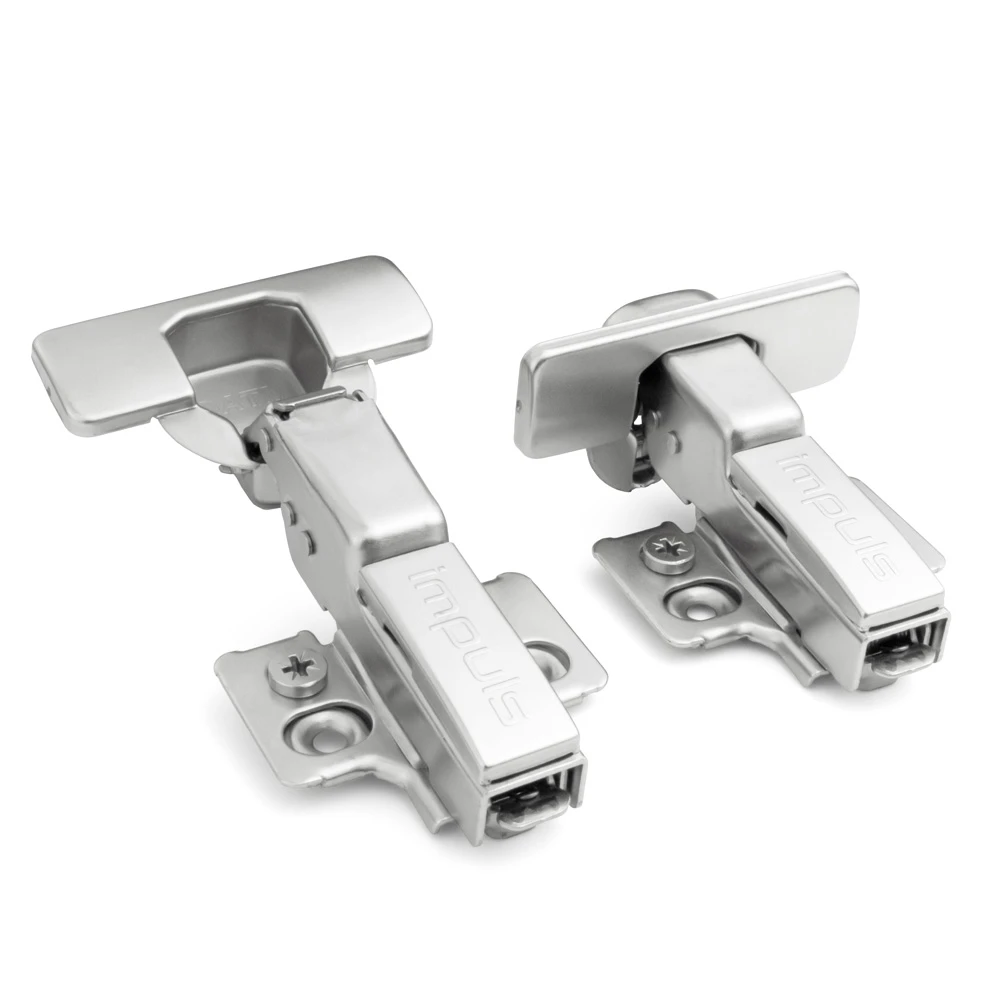

✔ Half overlay hinge for adjacent furniture fronts
Half overlay hinges are intended for pairs of doors in the middle of a run of cabinets, where two doors have their hinges mounted on opposite sides of a shared middle partition.
✔ Hydraulic soft close
The built-in hydraulic mechanism ensures smooth and gentle closing of the front. The door does not slam when closing, which increases everyday comfort when using the furniture.

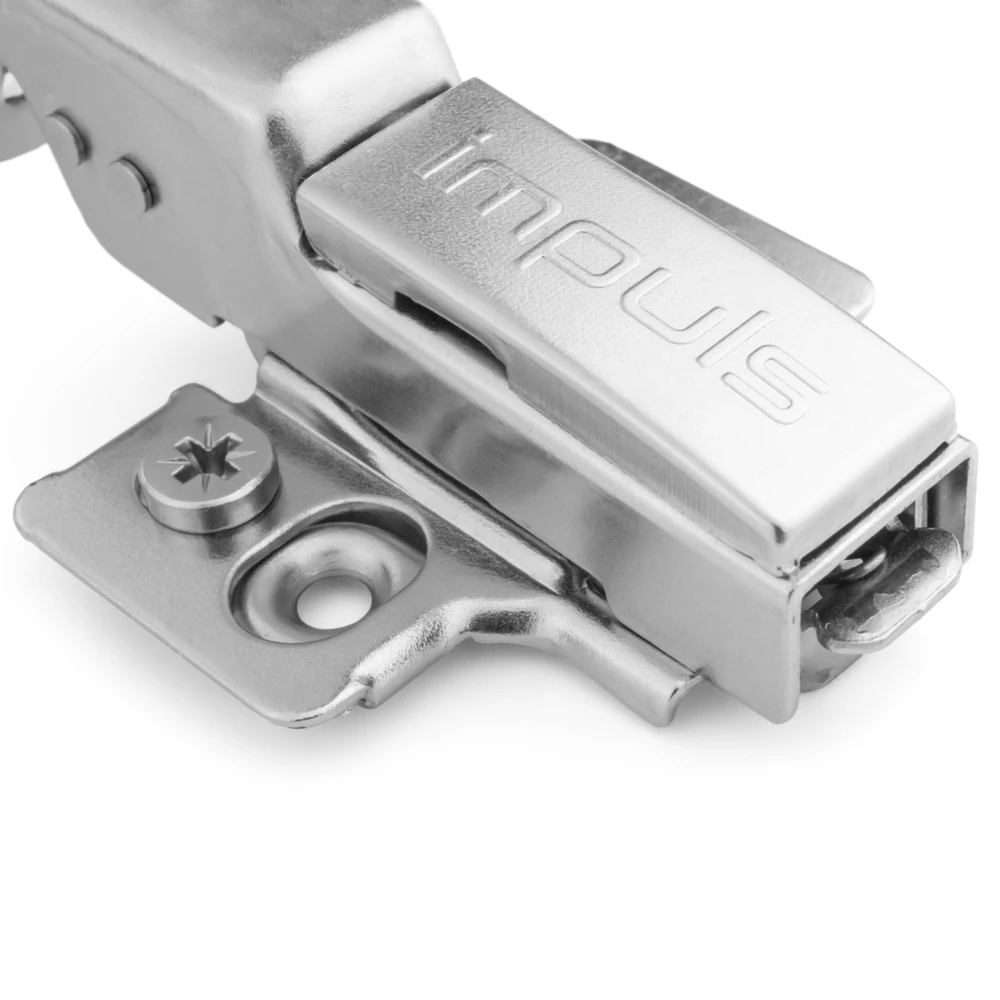

✔ CLIP-ON system - quick front installation
The hinge is equipped with a mounting plate with the CLIP-ON system, allowing the door to be quickly detached and reattached. This makes installation, adjustment and possible front removal much easier. It is practical both when assembling new furniture and when making later corrections.
✔ 3D adjustment
3D adjustment allows you to precisely align the front in three directions. You can correct the gaps between doors, align the front with the cabinet body and improve its position after installation.
✔ Standard ⌀35 mm cup
The hinge has a standard ⌀35 mm cup, used in most furniture fronts. A complete set of wood screws is included.
Technical data:
- ☛ Brand: ATM
- ☛ Model: AS-08
- ☛ Mounting plate height: H0
- ☛ Cup diameter: ⌀35 mm
- ☛ Opening angle: 98°
- ☛ 3D adjustment
- ☛ Soft close
- ☛ CLIP-ON

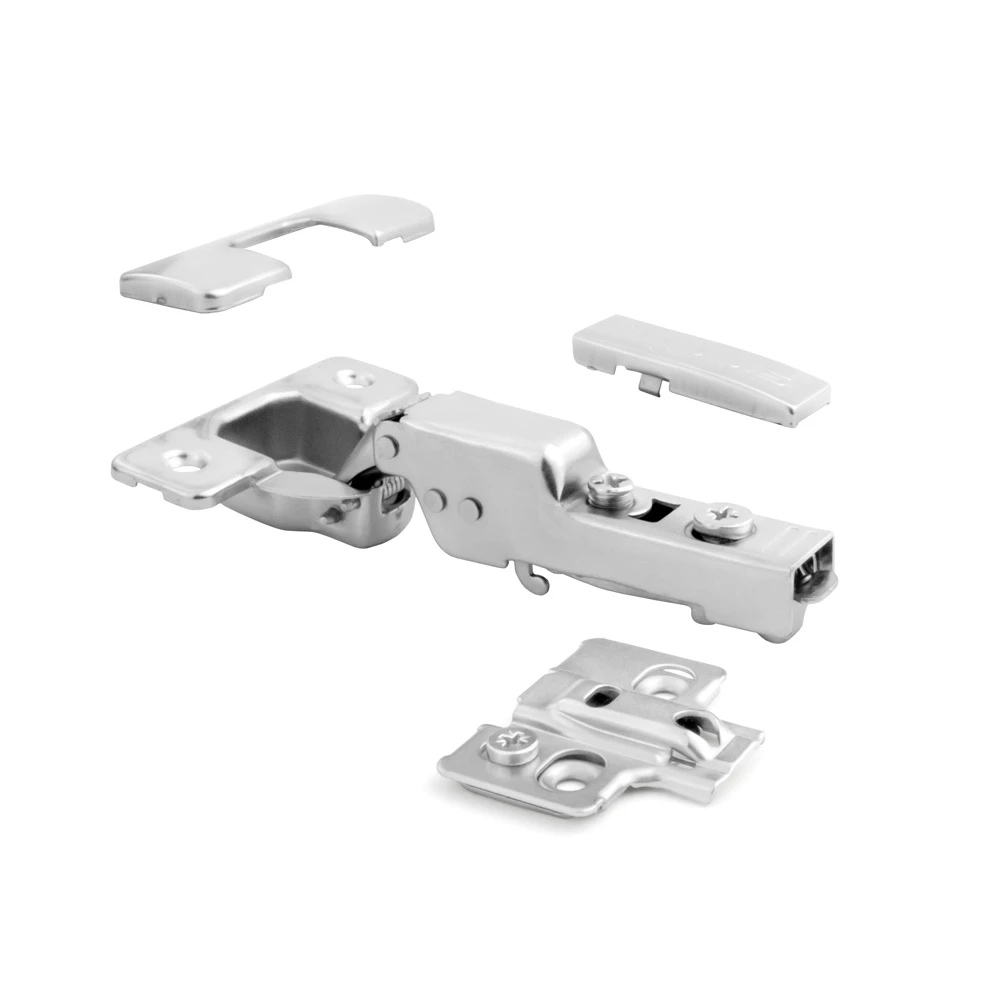

Set includes:
- AS-08 hinge - 1 piece
- H0 mounting plate - 1 piece
- Wood screws
Fittings tailored to your furniture
By choosing ATM brand products, our customers can be confident that the accessories are perfectly suited to their needs. We offer a wide range of furniture accessories that are not only functional but also beautifully crafted, making them easy to adapt to any interior style. By selecting our products, you are investing in superior quality and craftsmanship. Discover our full range of products today!
