Full overlay cabinet hinge ATM QS-00 H-0 Soft-Close & Clip-On
Leave feedback on the product
Product code: 41111
Zadzwoń i zamów
Opis

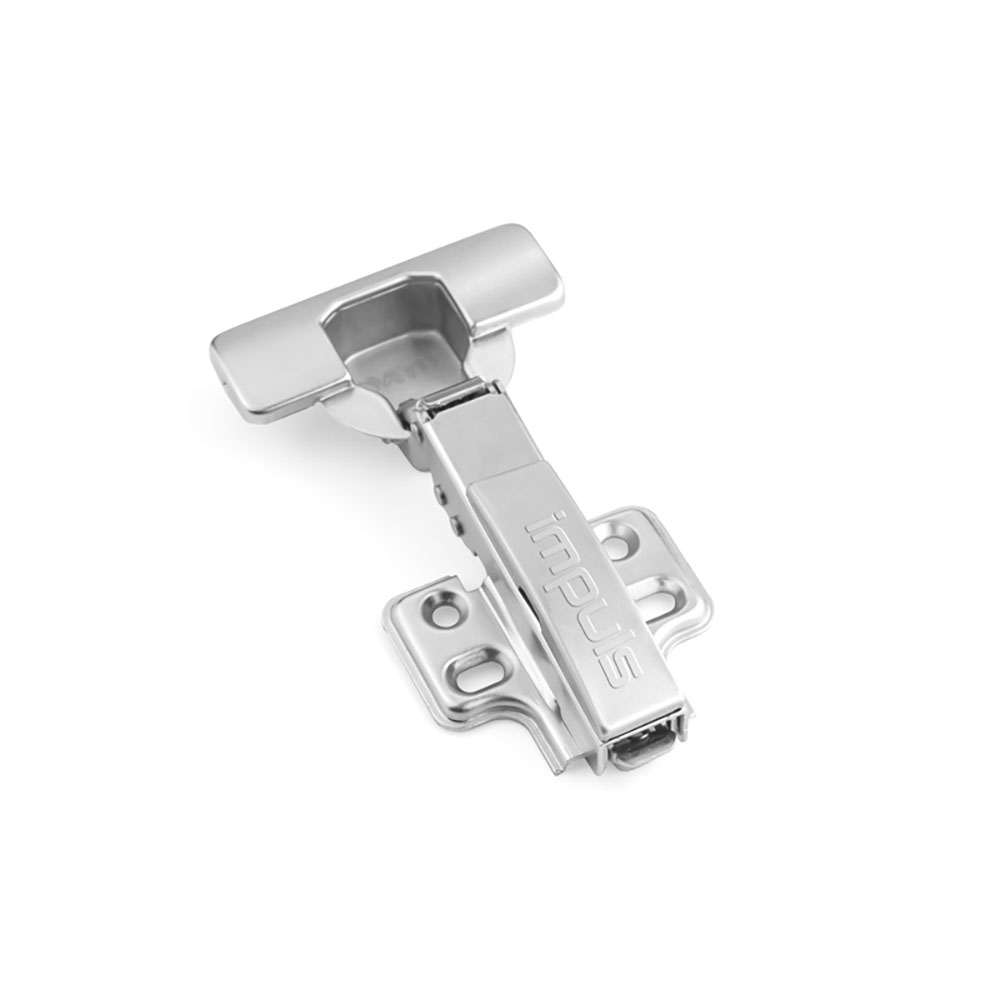

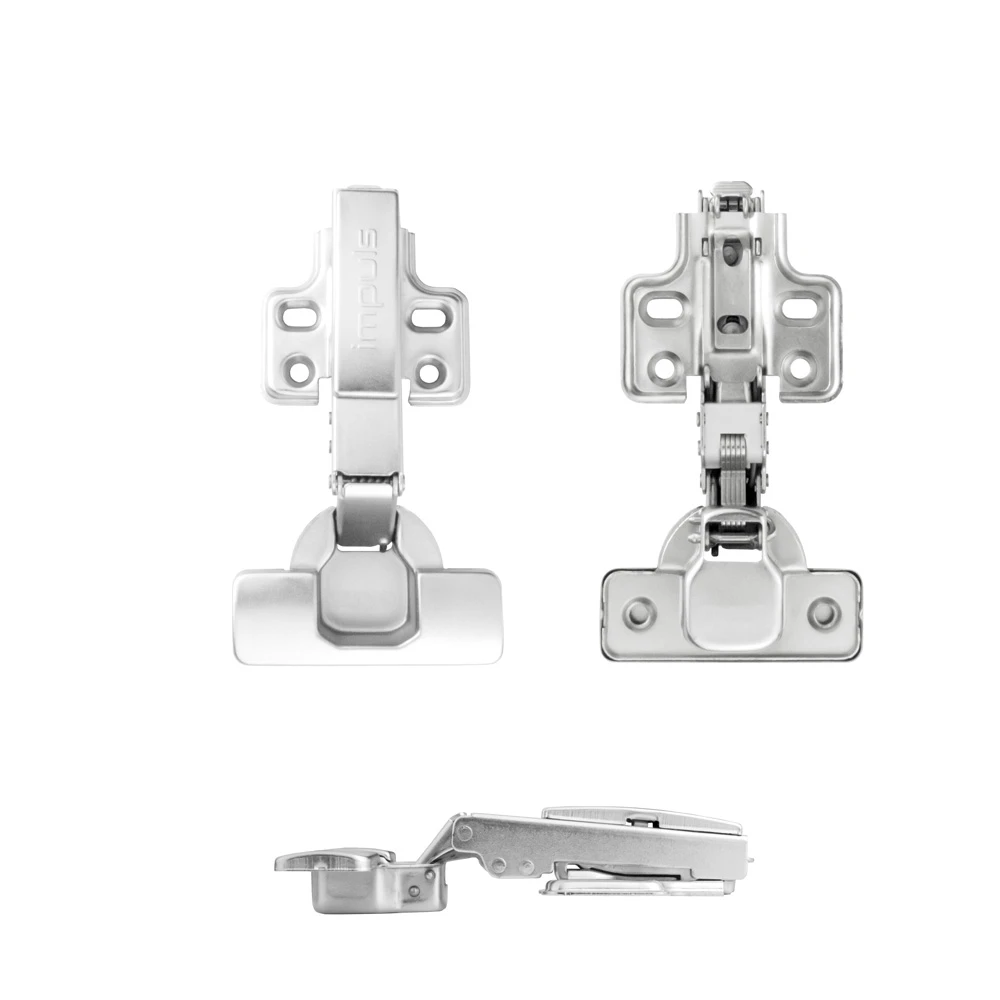

Full overlay hydraulic cabinet hinge IMPULS QS-00 H0 ⌀35 mm with soft close, CLIP-ON mounting plate and screw set
ATM furniture accessories - fittings tailored to your furniture
Product description:
✔ Full overlay hinge for cabinet fronts
The QS-00 model is designed for full overlay cabinet doors, where the front covers the side panel of the cabinet when closed. Only minimal gaps remain on the sides, allowing the door to open and close properly. This is the most commonly used type of hinge in cabinets.
✔ Soft close
The built-in soft-close mechanism ensures smooth and quiet closing of the cabinet front. The door does not slam when closed, which increases everyday comfort of use.
✔ CLIP-ON system - quick front installation
The hinge is equipped with a CLIP-ON mounting plate, allowing the cabinet door to be quickly detached and reattached. This makes installation and possible removal of the front much easier.
✔ Screw set included
The set includes screws ready for installation.
✔ Wide opening angle
The 98° opening angle provides convenient access to the inside of the cabinet and works well in standard furniture applications. The hinge has a standard cup with a diameter of ⌀35 mm, used in most cabinet fronts.
Technical data:
- ☛ Brand: ATM
- ☛ Model: QS-00
- ☛ Mounting plate height: H0
- ☛ Cup diameter: ⌀35 mm
- ☛ Opening angle: 98°
- ☛ Soft close
- ☛ CLIP-ON

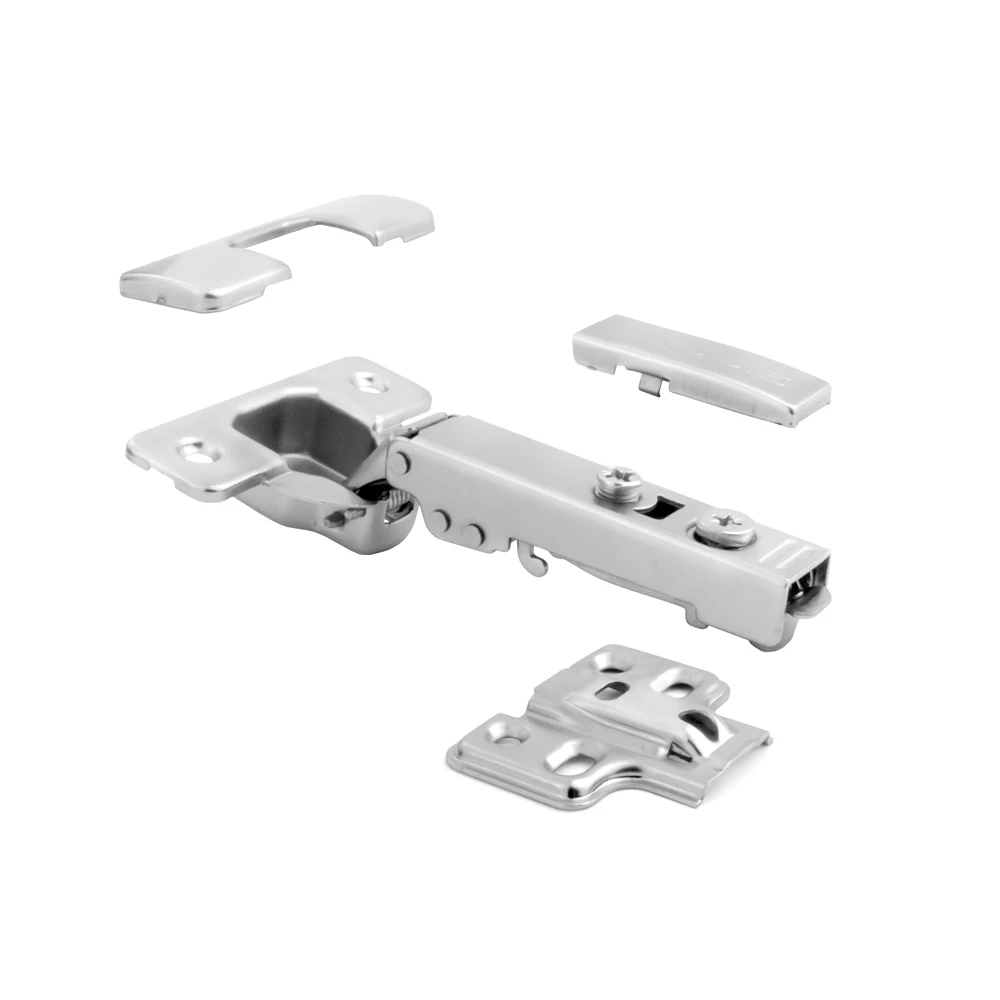

Set includes:
- QS-00 hinge - 1 piece
- CLIP-ON H0 mounting plate - 1 piece
- Screws - set
Fittings tailored to your furniture
By choosing ATM brand products, our customers can be confident that the accessories are perfectly suited to their needs. We offer a wide range of furniture accessories that are not only functional but also beautifully crafted, making them easy to adapt to any interior style. By selecting our products, you are investing in superior quality and craftsmanship. Discover our full range of products today!
